Total Recall VR Audio Mixer



Total Recall VR Audio Mixer is a low noise 2-channel audio mixer that can combine two audio sources into one.

Specification:

  • 3.5mm TS and RJ12 connector for each input
  • Signal level control (gain) for each input
  • Redundant line-level output
  • 3.5mm TS and RJ12 connector for each output
  • 9-15VDC power source centre negative
  • Maximum output signal level: +16dBu (with 15VDC power supply)
  • Minimum input signal level: -30dBu
  • Input impedance: 100Kohm
  • Frequency response: 20Hz-20KHz
  • Total harmonic distortion: < .005%

Total Recall VR Audio Mixer is a low noise 2-channel audio mixer that can combine two audio sources into one.

You can use Total Recall VR Audio Mixer to:

  • Combine (mix) a stereo audio signals into a mono signal.
  • Combine (mix) the transmit (Tx) and receive (Rx) audio signal of a 2-way radio, repeater or base station.
  • Combine (mix) any two line level audio signals into a single line level signal.

The Total Recall VR Radio Mixer requires a 9VDC-12VDC power pack to power the mixer. This power pack is NOT supplied with the unit.

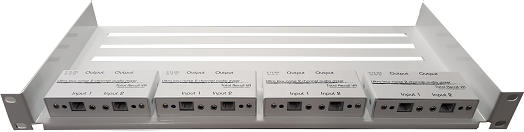

A rack mount shelf is available for installation of multiple Total Recall VR Audio Mixers into an equipment rack. Use the shelf to install 4 Total Recall VR Audio Mixers so that the whole assembly is 1RU high.

Rack Mount Shelf



Alternatively, use the shelf to install 16 Total Recall VR Audio Mixers so that the whole assembly is 3RU high.

Rack Mount Shelf
